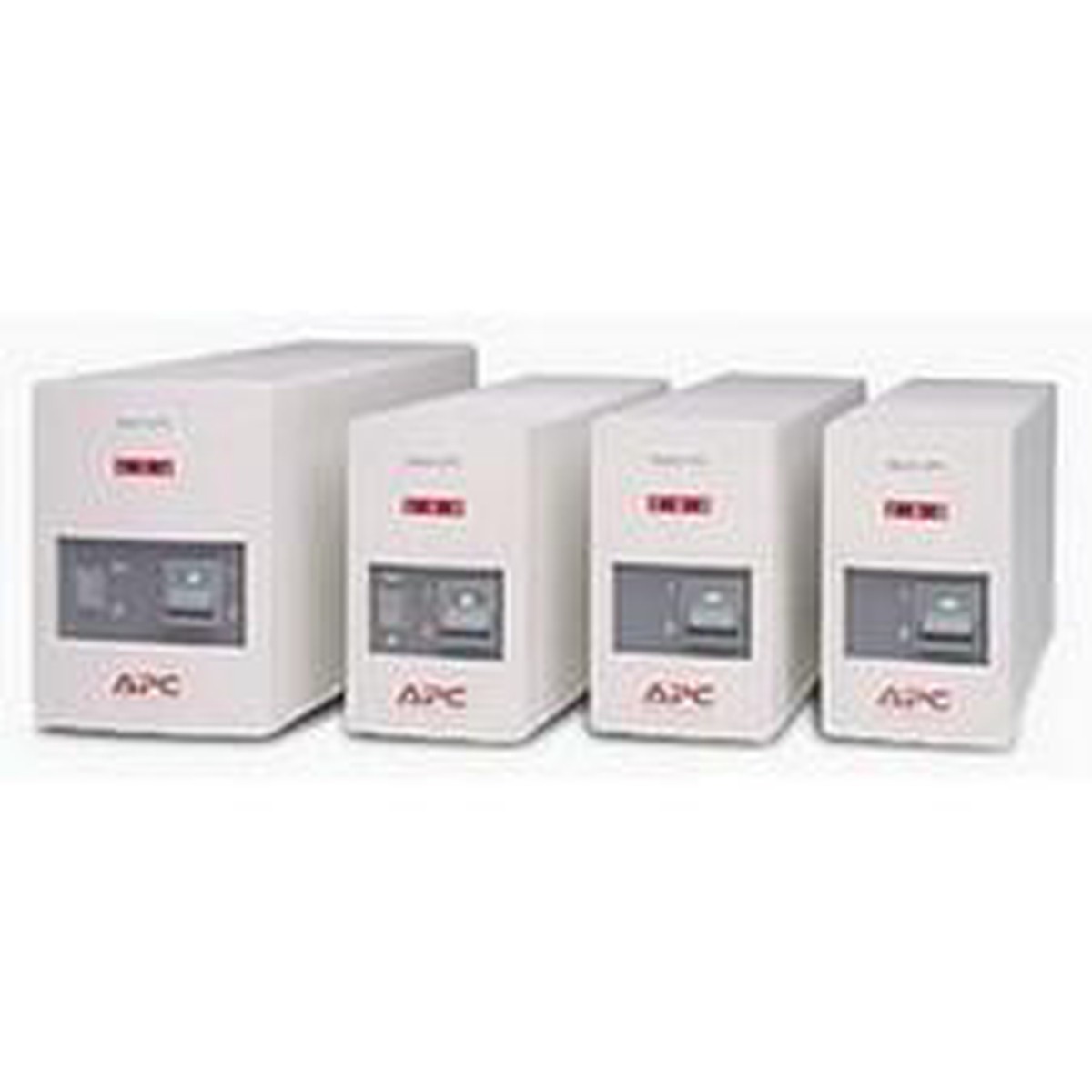

APC Back-UPS 650VA – 650VA – 5.4 Minute Full Load – 3 x IEC 320-C13, 1 x IEC 320-C13 – Battery/Surge-protected, 2

Catalog Page: 211

General InformationManufacturer:Schneider Electric SA
Manufacturer Part Number:BK650MI
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Back-UPS
Product Name:Back-UPS 650VA
Marketing Information:The effects of power problems include keyboard lockup, complete data loss, hardware degradation, damaged motherboards, and more, making downtime inevitable. An APC Back-UPS instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges – even lightning
Product Type:Standby UPS
Technical InformationPlug/Connector Type:IEC 320-C14
Receptacles:

• 3 x IEC 60320 C13
• 2 x IEC 60320 C13
• 1

Power DescriptionLoad Capacity:650 VA
Input Voltage:220 V AC
Output Voltage:230 V AC
Power Consumption:400 W
Waveform Type:Stepped Sine Wave
Surge Energy Rating:300 J
ManagementAlarm:

• On Battery
• Low Battery

Controls/IndicatorsStatus Indicators:Output power on indicator LED
Interfaces/PortsSerial Port:Yes
Battery InformationBattery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):5.40 Minute
Backup/Run Time (Half Load):15.40 Minute
Battery Life:6 Year
Typical Battery Recharge Time:11 Hour
Hot Swappable:Yes
Environmental ConditionsMaximum Operating Temperature:113F (45C)
Sound Emission:40 dB(A)
Thermal Dissipation:25 BTU/h
Physical CharacteristicsColor:Beige
Height:6.60″ (167.64 mm)
Width:4.70″ (119.38 mm)
Depth:14.20″ (360.68 mm)
Weight (Approximate):11.02 kg
MiscellaneousPackage Contents:

• Back-UPS
• User Manual
• Basic UPS signalling RS-232 cable
• Software CD

Certifications & Standards:

• C-tick
• CE
• EN50091-1
• EN50091-2
• GOST
• PCBC
• VDE

WarrantyLimited Warranty:2 Year
